Radiator Heating

Nova Florida Home Radiators

Nova Florida's individual elements are made of aluminum alloy that undergoes rigorous testing to ensure that it is of the highest quality and complies with the material standards.

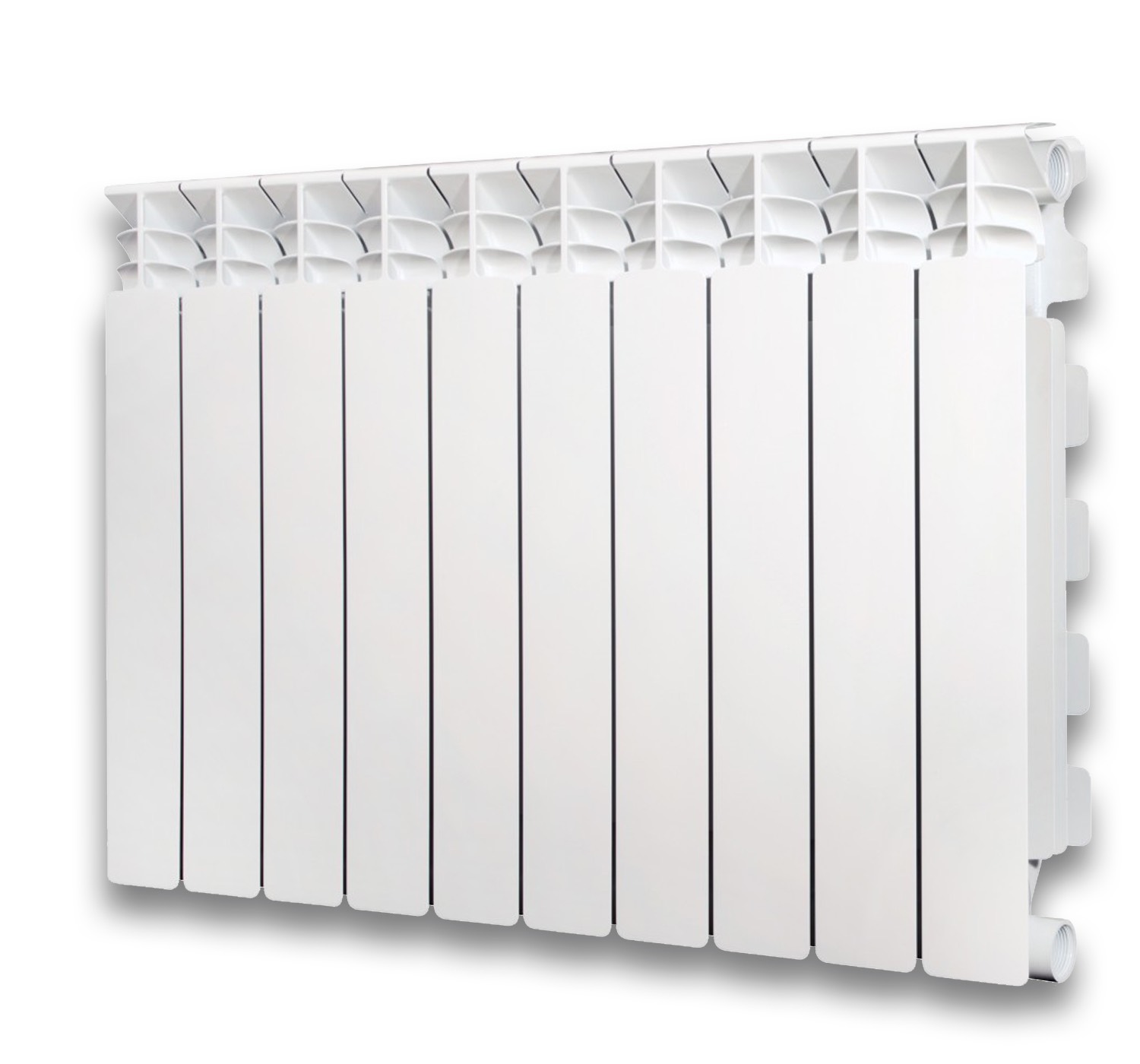

Model "SEVEN" is a modular die-cast aluminum radiator available with the centre distance 16 3/4", 22 3/4", 31 1/2", and 72".

Able to connect to unlimited elements
Brackets, bushings and bleeders included
Maximum hot water temperature 95°C
Maximum working pressure is 6 bars (87 psi)
Radiators must be installed min. 4" from the floor

* 10 Year Warranty

GET A QUOTE

Nova Florida Radiators

A modular die-cast aluminum radiator featuring an attractive design,
improved functionality and thermal efficiency.

Note: Heavy Duty Model suitable for Steam Systems.

Available Colour & Finish

RAL 9016 Finish

RAL 9016

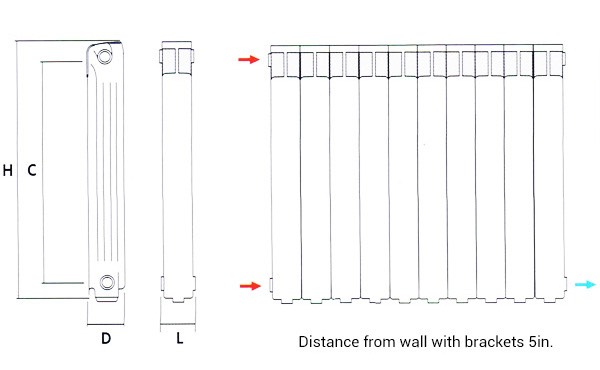

Technical Specification:
Model	Width L (inch)	Height H (inch)	Depth D (inch)	Connection Distance C (inch)	Connection Diameter (inch)	Weight (lb)	Heat Output
Model	Width L (inch)	Height H (inch)	Depth D (inch)	Connection Distance C (inch)	Connection Diameter (inch)	Weight (lb)	BTU 140°F	BTU 160°F
350/100	3 1/8	16 3/4	3 3/4	13 3/4	3/4 or 1/2	3	281	341
500/100	3 1/8	22 3/4	3 3/4	19 3/4	3/4 or 1/2	3	372	443
800/100	3 1/8	34 1/2	3 3/4	31 1/2	3/4 or 1/2	4	520	627
180/100	3 1/8	72	3 3/4	69	3/4 or 1/2	8	1040	1254
